產品介紹 Product Introduction

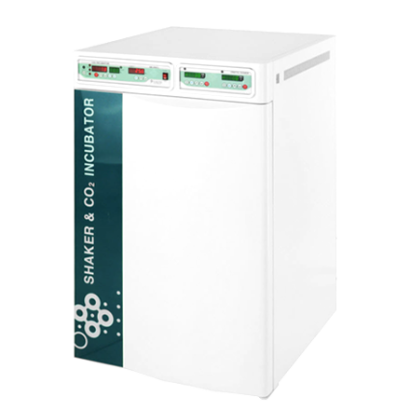

aniCell系列大容量CO2 振盪培養箱非常適合用於生物製程、蛋白質工程、晶體學、基因工程、細胞生物學和新藥開發等領域。具有易清潔及可移出高效能的振盪裝置，和雙光束IR sensor提供精確的二氧化碳控制，六面直接加熱系統確保可確保櫃內的溫度均勻性，為懸浮細胞培養提供了最佳解決方案。

型號:

NB-206CXXL

容量:

850公升

電壓:

110V/220V, 60Hz

產品規格說明 Product Specification

INCUBATOR	NB-206CXL	NB-206CXXL
Temp. range	Ambient +5℃ to 60℃	Ambient +5℃ to 60℃
Temp. accuracy	±1℃ at 37℃	±1℃ at 37℃
Humidity	≥70% at 37℃	≥70% at 37℃
CO2 range	0% to 20%	0% to 20%
CO2 accuracy	±0.3% at 5% at 37℃	±0.3% at 5% at 37℃
CO2 sensor	IR CO2 sensor	IR CO2 sensor
CO2 inlet pressure	0.7 ~ 1 bar	0.7 ~ 1 bar
Outer door	Silicon packing magnet door	Silicon packing magnet door
Inner door	Each inner door of 3 Shelves	Each inner door of 3 Shelves
Display	LED Display	LED Display
Jacket type	Air jacket type (6 sides heating)	Air jacket type (6 sides heating)
Filter	Anti-Bacterial Hepa filter	Anti-Bacterial Hepa filter
Sterilization	U.V 4Wx1ea	U.V 4Wx1ea
Chamber volume	650 liter	850 liter
Shelves	3ea	3ea
Chamber dimensions	700(W)x650(D)x1430(H)mm	700(W)x800(D)x1530(H) mm
Each compartment Dimension	Compartment 1(Bottom): 700(W)x650(D)x430(H) mm Compartment 2, 3 (Middle, Top): 700(W)x650(D)x380(H) mm	700(W)x800(D)x410(H) mm
Overall dimensions	820(W)x780(D)x1740(H) mm	820(W)x920(D)x1840(H) mm
Weight	323kg	393kg
Power	110/220V, 50/60Hz	110/220V, 50/60Hz
SHAKER
Shaking motion	Orbital	Orbital
Speed range	30 to 200 rpm	30 to 250 rpm
Speed accuracy	±1rpm	±1rpm
Speed increment	1rpm	1rpm
Time range	Continuous or up to 47h 59mins	Continuous or up to 47h 59mins
Time accuracy	±1%	±1%
Time increment	1 minute	1 minute
Motor	Plate type BL/DC Motor	Plate type BL/DC Motor
Drive system	Beltless direct drive	Beltless direct drive
Orbit diameter	25mm	25mm
Platform size	520(W)x520(D) mm	520(W)x520(D) mm
Dimension	465(W)x540(D)x125(H) mm	465(W)x540(D)x125(H) mm
